Premium 4MHz Focused Ultrasound Transducer for Aesthetic & Medical HIFU Systems

    P-F0740020R25
    Delivery:
    EXW
    minimum order:
    1 piece
    Supply Ability:
    10000piece / Month
    Country of Origin:
    Guangdong, China
    Stock Time:
    7Day
    Quantity:
    Contact Now

    Premium 4MHz Focused Ultrasound Transducer for Aesthetic & Medical HIFU Systems

    Module : P-F0740020R25

    Resonant Frequency Fs (in Air)

    4±5%MHz

    Free Capacitance CT (1 kHz, 1 V)

    5300±20%pF

    Resonant Impedance Zmin

    <3Ω

    Electromechanical Coupling Coefficient Kp

    ≥0.35

    Bandwidth ΔF （ΔF = Fp - Fs）

    ≥0.35MHz

    Maximum Operating Voltage (Pulse)

    ≤140Vpp

    Acoustic Power (Reference Value)

    7W

    Operating Temperature

    -20℃~65℃

    Waterproof Rating

    IPX8

    Housing Material

    ASA

    Housing Color

    Black

    Cable Type

    UL1533 28AWG, Gray Shielded Wire

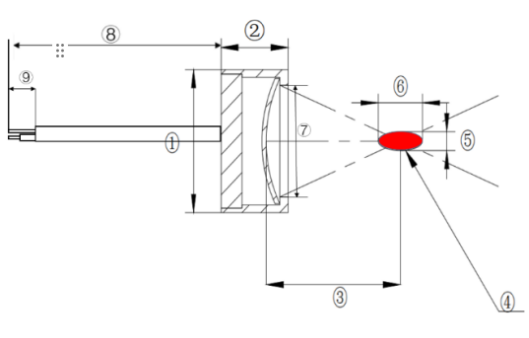

    Module Structure of P-F0740020R25

    Item

    Value

    ① Housing Diameter

    20±0.1mm

    ② Housing Diameter

    8±0.1mm

    ③ Radius of Curvature (Geometric Focal Length)

    25±0.1mm

    ④ -6dB Focal Width

    0.77mm

    ⑤ -6dB Focal Length

    7.21mm

    ⑥ Effective Diameter

    19±0.1mm

    ⑦ Cable Length

    165±5mm

    ⑧ Strip Length

    7±1mm
