2.5 MHz Single-Nozzle Spray-type Megasonic Cleaning Nozzle High-Stability

    P-W1010016
    Delivery:
    EXW
    minimum order:
    1 piece
    Supply Ability:
    10000piece / Month
    Country of Origin:
    Guangdong, China
    Stock Time:
    7Day
    Quantity:
    Contact Now

    2.5 MHz Single-Nozzle Spray-type Megasonic Cleaning Nozzle High-Stability
    Model : P-W1010016

    Spray-type Megasonic Cleaning Nozzle is mainly used in fields such as precision optics and optoelectronics, as well as semiconductor wafer cleaning. It features an IPX8 waterproof rating, high conversion efficiency and easy installation.

    Here comes its specification :

    Resonant Frequency, Fp (in air)

    2.8 MHz±5%

    Free Capacitance, CT (1 kHz, 1 V)

    1±20%nF

    Resonant Impedance, Zmin (R1)

    ＜5Ω

    Electromechanical Coupling Coefficient, Kp

    ≥0.35

    Bandwidth, ΔF (ΔF = Fp − Fs)

    ≥0.25MHz

    Maximum Operating Voltage (Pulsed Wave)

    ≤100Vpp

     Operating Temperature

    -20~+65℃

    Ingress Protection Rating

    IPX8

    Housing Material

    Resin

    Housing Color

    White

    Cable Type

    1533 28# Black, 1.8 m




    And its dimensions look like :

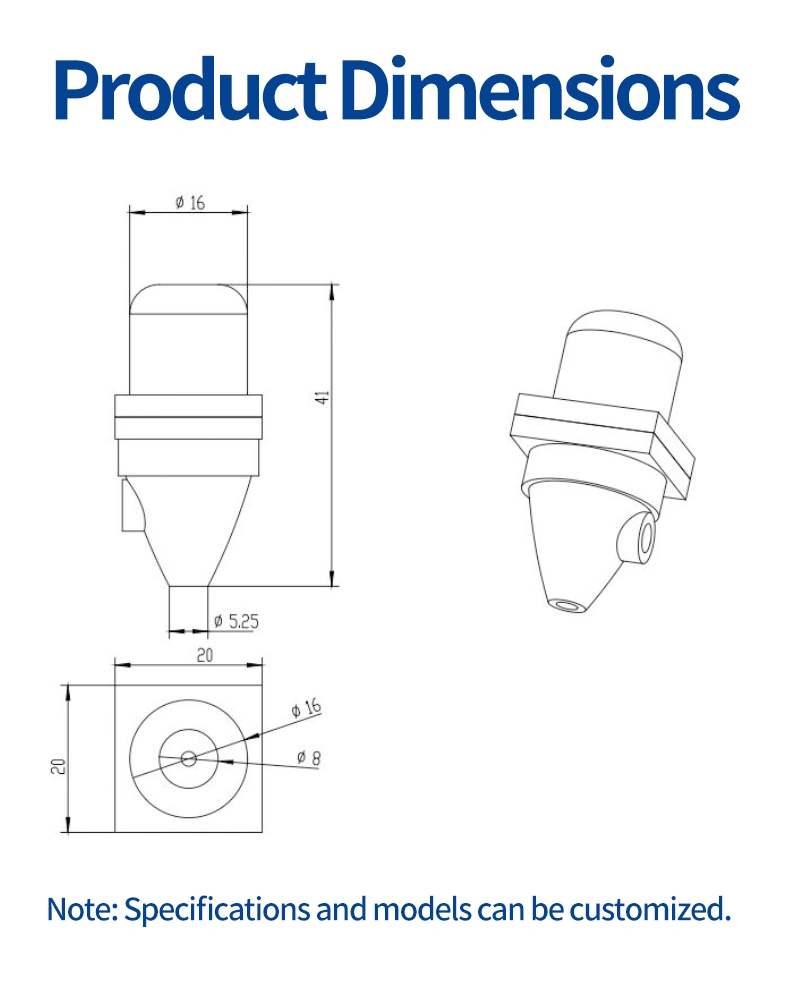

    Dimension Drawing of Each Component

    Typical parameter examples can also serve as an important reference :

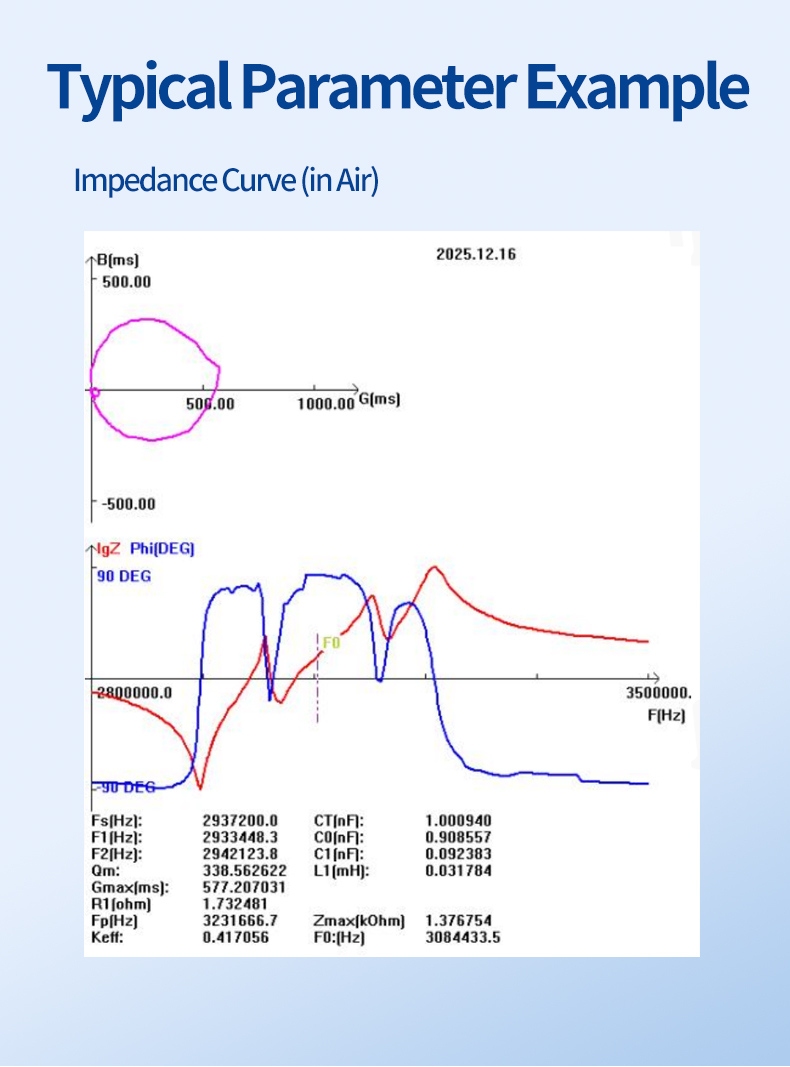

    Typical Parameter Example

    Welcome to inquire for more details! Also, customization is also acceptable!
