    7MHz Piezoelectric Ceramic Concave High-Frequency Boat-Shaped Probe for HIFU Ultrasound Ablation of Rhinitis Ultrasonic Focused Transducer
    Model : P-F177006R06

    7MHz Piezoelectric Ceramic Concave High-Frequency Boat-Shaped Probe for HIFU Ultrasound Ablation of Rhinitis Ultrasonic Focused Transducer is mainly used in the subnasal mucosal tissue in a targeted manner, enabling highly effective, safe and reliable treatment of rhinitis. It features high reliability, high safety, small focal point error, long service life and high efficiency.

    Here comes its specification :

    Anti-resonance Frequency Fp
    (in Air)

    7±5%MHz

    Free Capacitance CT
    (1KHz,1V)

    550±20%nF

    Resonance Impedance Zmin
    (R1)

    <50Ω

    Electromechanical Coupling Factor Kp

    ≥0.35

    Frequency Bandwidth F
    (F=Fp-Fs)

    ≥0.25MHz

    Maximum Operating Voltage
    (Pulsed Wave)

    ≤50Vpp

    Waterproof Rating

    IPX8

    Operating Temperature

    -20~+65℃

    Housing Color

    White

    Housing Material

    Resin

    Linear Type

    UL11085-38#ShieldedWire
    （Brown）




    And its dimensions look like :

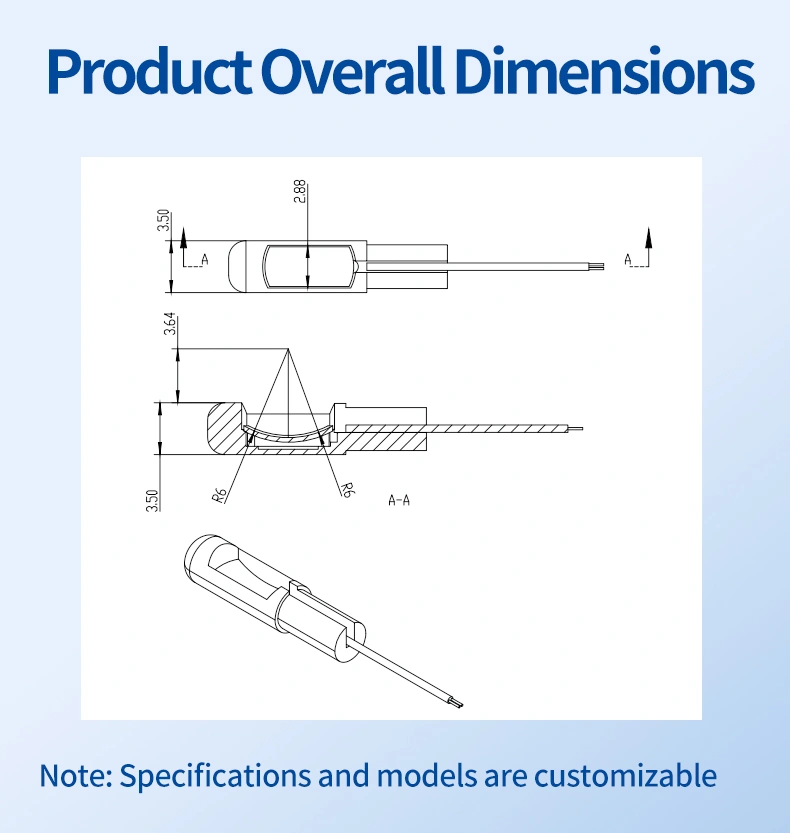

    Module P-F177006R06 Overall Dimensions

    Welcome to inquire for more details! Also, customization is also acceptable!
