800K HIFU Focused Ultrasonic Transducer Aesthetic Ultrasound Concave Piezoelectric Ceramic Probe

    P-F1608055R50
    Delivery:
    EXW
    minimum order:
    2 pieces
    Supply Ability:
    10000pieces / Month
    Country of Origin:
    Guangdong, China
    Stock Time:
    15Day
    Quantity:
    Contact Now

    800K HIFU Focused Ultrasonic Transducer Aesthetic Ultrasound Concave Piezoelectric Ceramic Probe
    Model : P-F1608055R50

    800K HIFU Focused Ultrasonic Transducer Aesthetic Ultrasound Concave Piezoelectric Ceramic Probe is mainly used in the Aesthetic Ultrasound Vibrator Probe Sensor. It features High safety, Low error, High conversion efficiency, Long service life and High focal energy density.

    Here comes its specification :

    Anti-resonance Frequency Fp
    (In Air)

    800±5%KHz

    Free Capacitance CT
    (1KHz, 1V)

    8.5±20%nF

    Resonance Impedance Zmin
    (R1)

    ＜10Ω

    Electromechanical Coupling Factor Kp

    ≥0.35

    Frequency Bandwidth F(F=Fp-Fs)

    ≥40KHz

    Maximum Operating Voltage
    (Pulse Wave)

    ≤400Vpp

    Acoustic Power
    (Reference Value)

    70W

    Operating Temperature

    -20~+60℃

    Waterproof Rating

    IPX8

    Housing Material

    Aluminum Alloy

    Housing Color

    Silver White

    Linear Type

    2-Core 0.3mm²,
    RVSP Twisted Shielded Cable




    And its dimensions look like :

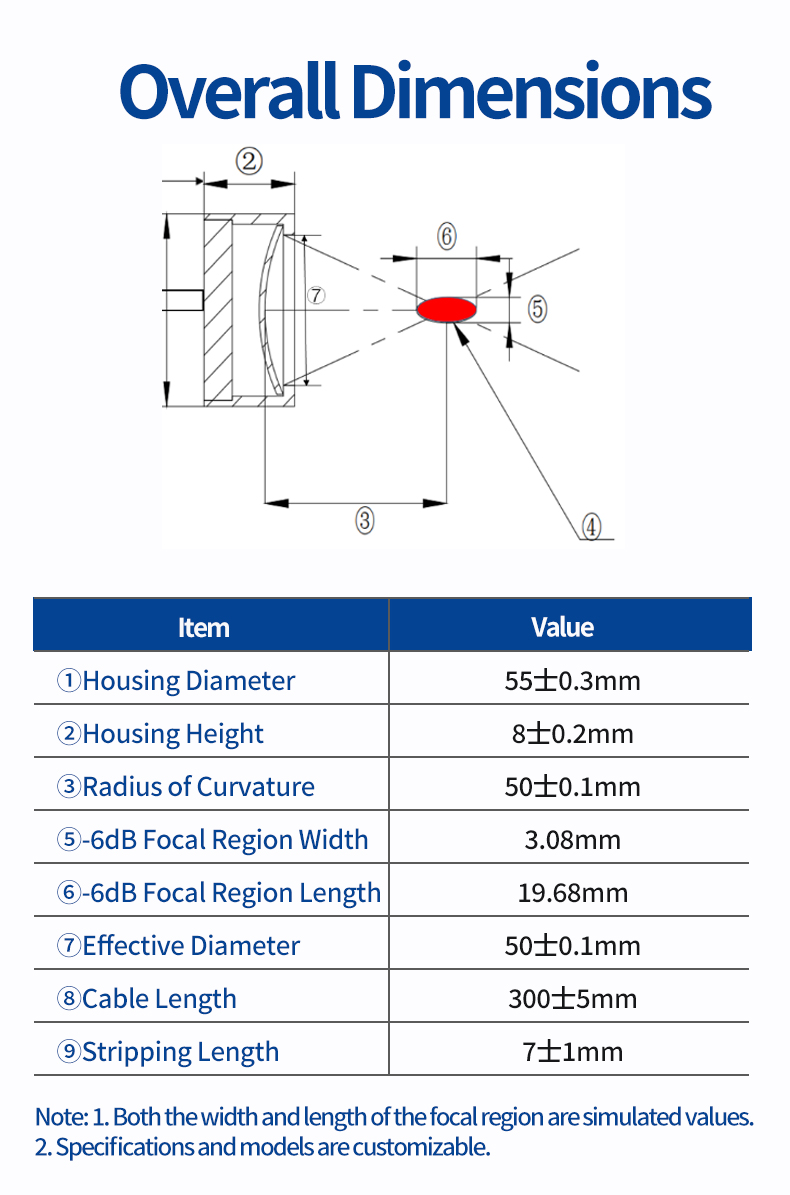

    Overall Dimensions of Module P-F1608055R50

    What is the difference between our products and others?

    Advantages of Module P-F1608055R50 compared with others


    Typical Parameter Examples may tell you more :

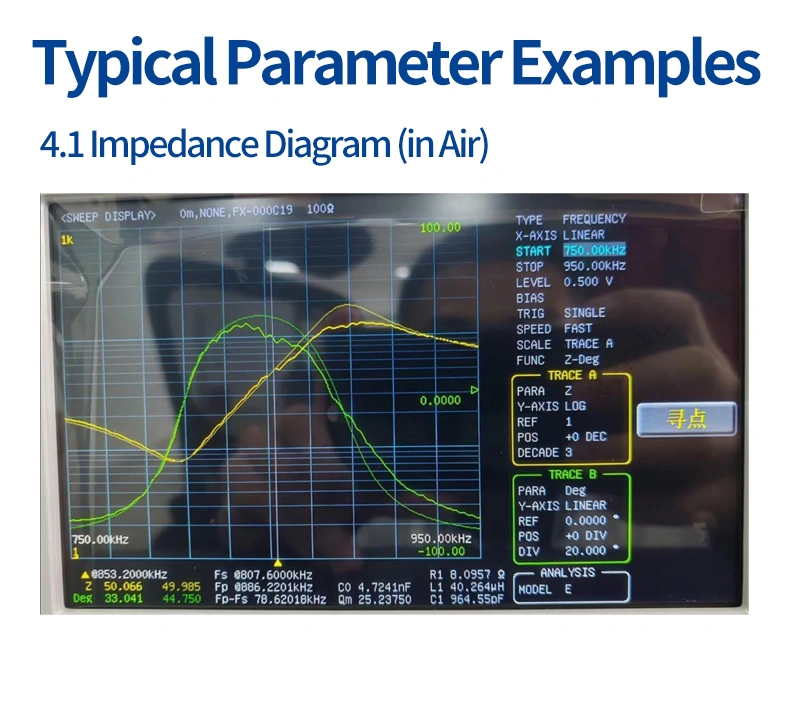

    Typical Parameter Examples of Module P-F1608055R50

    Welcome to inquire for more details! Also, customization is also acceptable!
