    75 kHz Pressure-resistant 100-meter Underwater Acoustic Transducer
    Model : P-N0800730

    75 kHz Pressure-resistant 100-meter Underwater Acoustic Transducer is mainly used in fields such as Underwater Obstacle Avoidance and Underwater Communication, Swimming Pool Robot Obstacle Avoidance as well as Swimming Pool Robot Communication. It features an IPX8 waterproof rating, Anti-interference, Underwater Data Transmission and Adaptable to Complex Underwater Acoustic Environments.

    Here comes its specification :

    Resonant Frequency, Fs (in air)

    75kHz±5%

    Free Capacitance, CT (1 kHz, 1 V)

    3.8nF±20%

    Resonant Impedance, Zmin (R1)

    ＜300Ω

    Electromechanical Coupling Coefficient, Kp

    ≥0.5

    Bandwidth, ΔF (ΔF = Fp − Fs)

    ≥10kHz

    Maximum Operating Voltage (Pulsed Wave)

    ≤400Vpp

    One transmitter and one receiver
    (3 meters, Vpp transmitter = 300V, 18 cycles, square wave)

    ＞0.5V

    Operating Temperature

    -20~+65℃

    Ingress Protection Rating

    IPX8

    Housing Color

    Black

    Cable Type

    1533 28 gauge gray wire, 1.8mm diameter

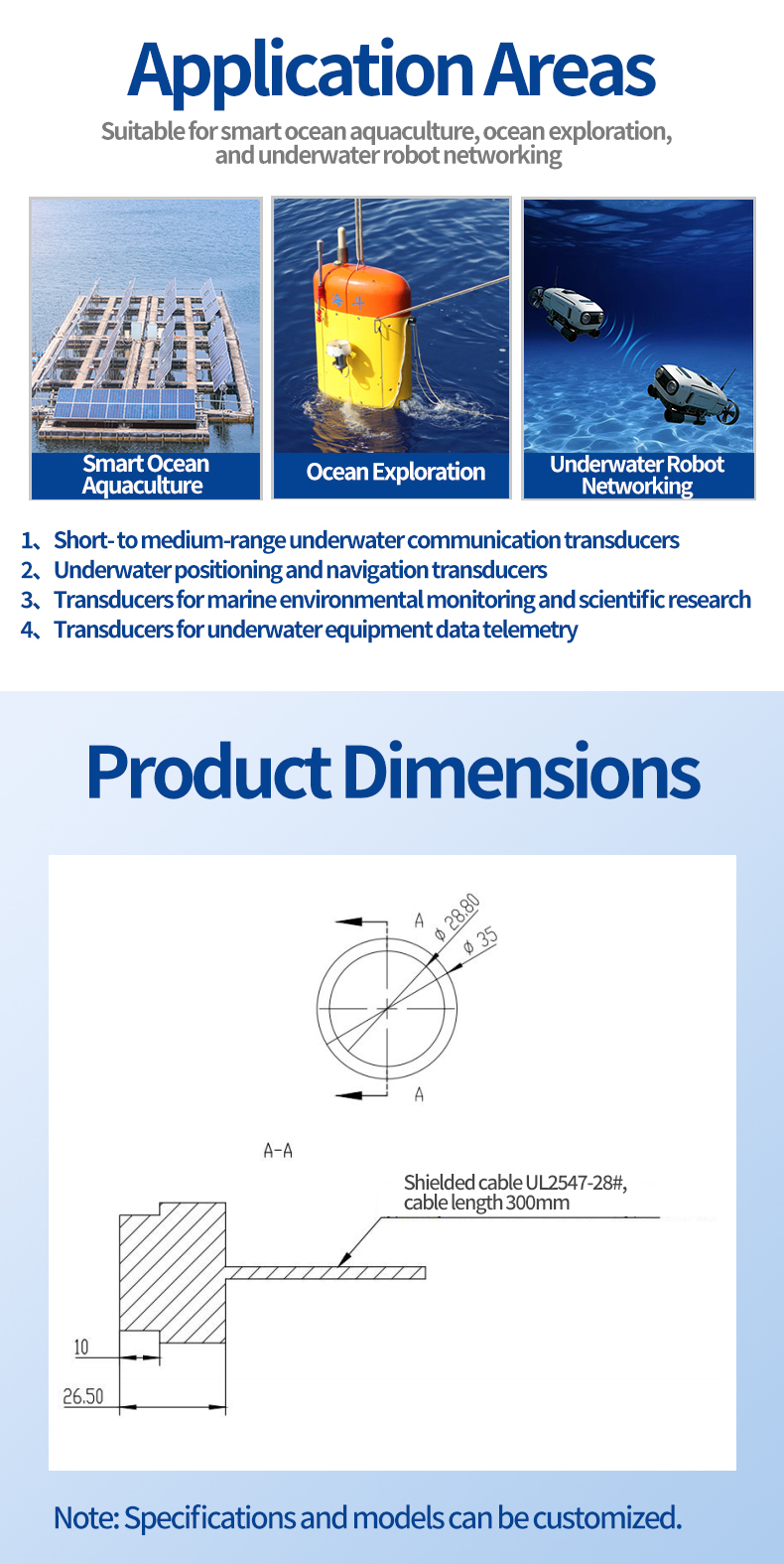

    And its dimensions look like :

    Underwater Communication Transducer application areas and dimensions drawing

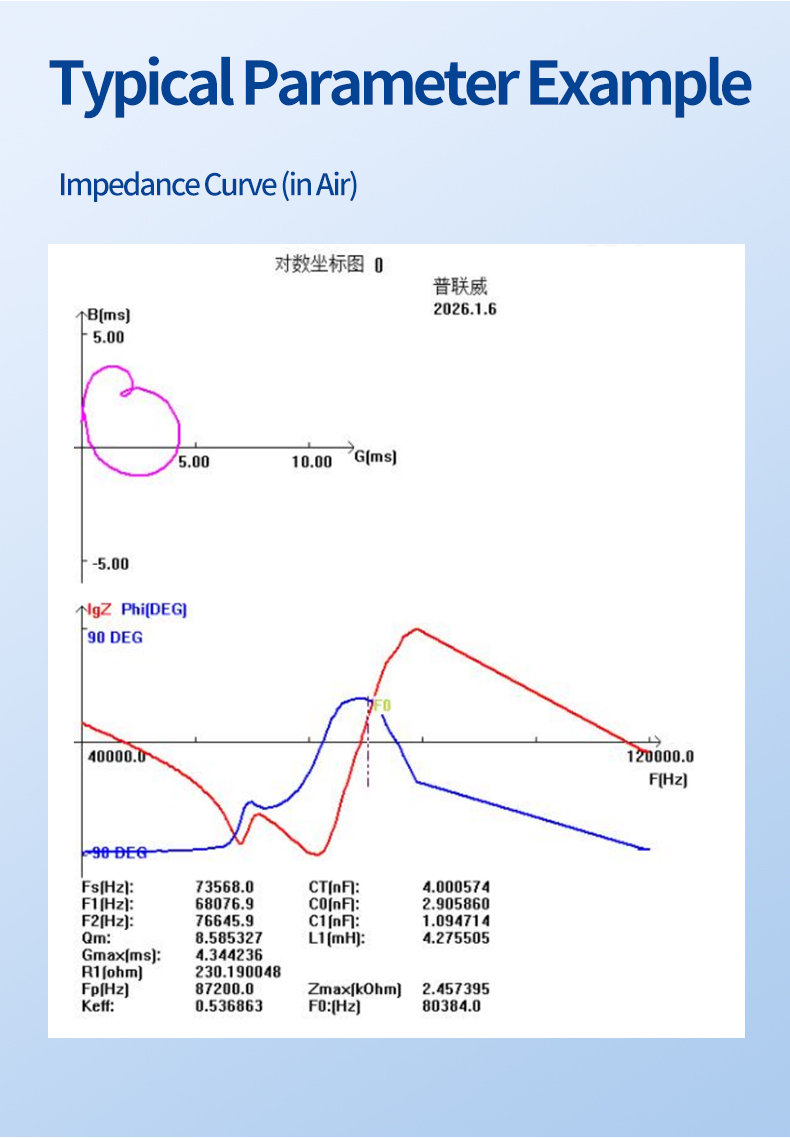

    Typical parameter examples can also serve as an important reference :

    Typical parameter example of underwater communication transducer

    Welcome to inquire for more details! Also, customization is also acceptable!
