    35 kHz Underwater Communication Transducer
    Model : P-N1000333

    35 kHz Underwater Communication Transducer is mainly used in fields such as Medium- to short-range underwater communication, Underwater positioning and navigation, ocean environment monitoring and scientific research and underwater equipment data telemetry. It features an IPX8 waterproof rating, Anti-interference, Underwater Data Transmission and Adaptable to Complex Underwater Acoustic Environments.

    Here comes its detailed specifications:

    Resonant Frequency, Fs (in air)

    35kHz±5%

    Free Capacitance, CT (1 kHz, 1 V)

    8.5±20%nF

    Resonant Impedance, Zmin (R1)

    ＜200Ω

    Electromechanical Coupling Coefficient, Kp

    ≥0.25

    Bandwidth, ΔF (ΔF = Fp − Fs)

    ≥1kHz

    Maximum Operating Voltage (Pulsed Wave)

    ≤700Vpp

    One transmitter and one receiver
    (3 meters, Vpp transmitter = 140V, 18 cycles, square wave)

    ＞1V

    Operating Temperature

    -20~+65℃

    Ingress Protection Rating

    IPX8

    Housing Material

    pps+30%gf

    Housing Color

    Black

    Cable Type

    Line 1533, Line 28, 1 meter in length

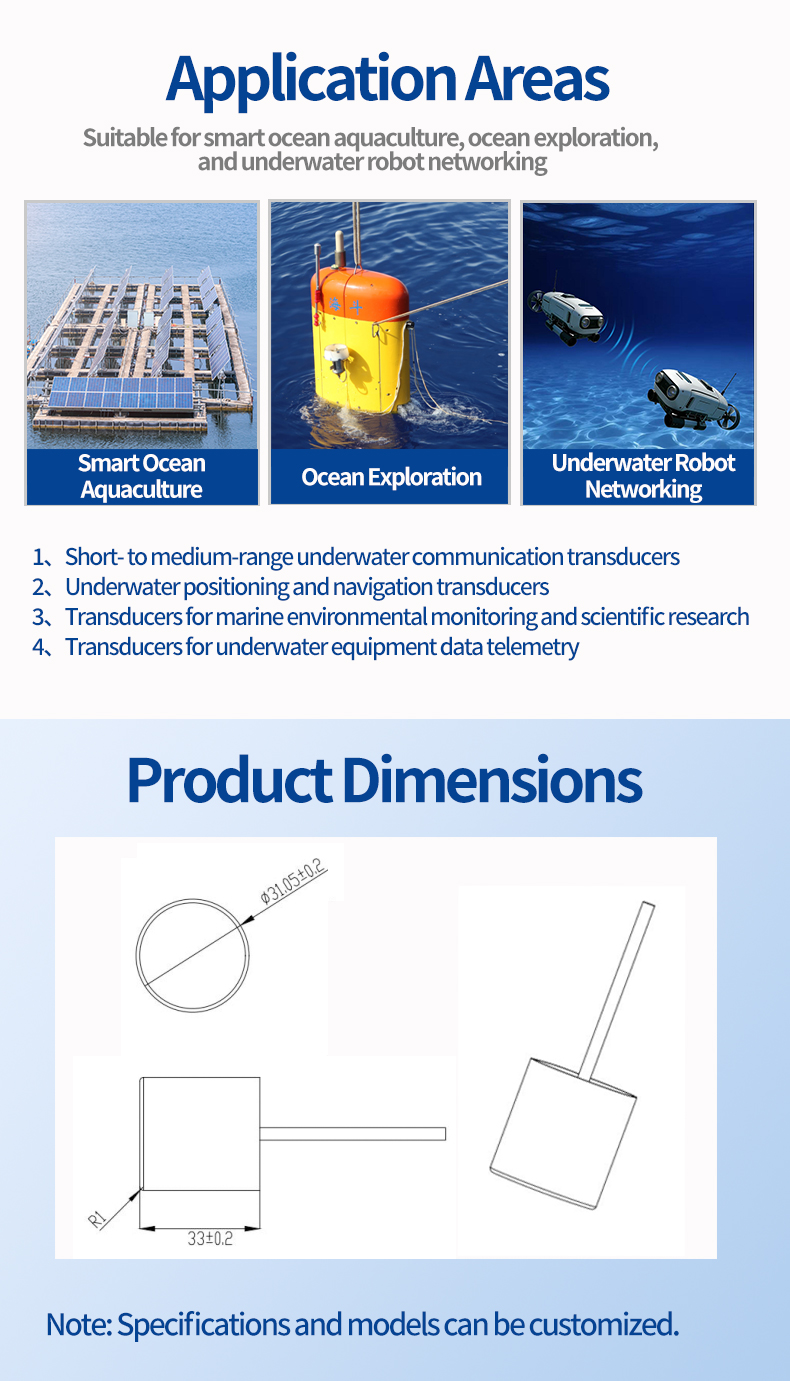

    And its dimensions look like :

    Application areas and dimensions of underwater communication transducer

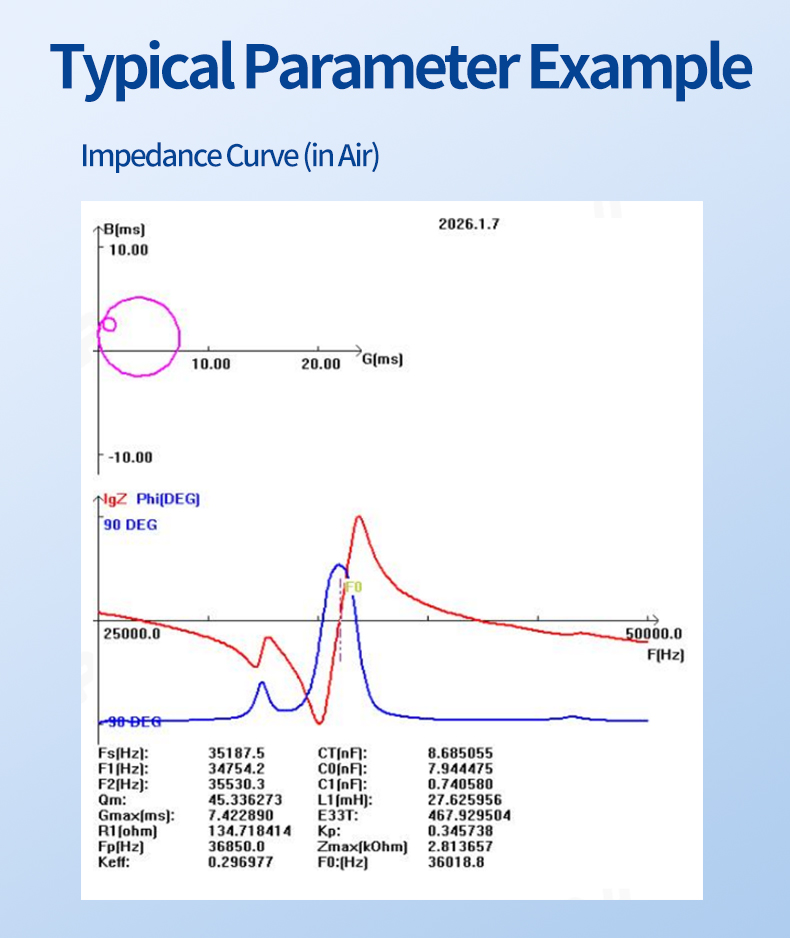

    Typical parameter examples can also serve as an important reference :

    Typical Parameter Example of Underwater Communication Transducer

    Welcome to inquire for more details! Also, customization is also acceptable!
