PLW 1Mhz Ultrasonic Flow Transducer for Water Metering Probes and Water Level Sensors

    P-T0710017
    Delivery:
    EXW
    minimum order:
    1 piece
    Supply Ability:
    10000piece / Month
    Country of Origin:
    Guangdong, China
    Stock Time:
    7Day
    Quantity:
    Contact Now

    PLW 1Mhz Ultrasonic Flow Transducer for Water Metering Probes and Water Level Sensors
    Model : P-T0710017

    1Mhz Ultrasonic Flow Transducer is mainly used in fields such as Water Meter Flow Monitoring Sensor, Underwater Ranging Sensor, Underwater Obstacle Avoidance Sensor and Liquid Level Sensors for Various Tanks and Vessels. It features Wide Application Range and High Cost-Effectiveness.

    Here comes its specification :

    Resonant Frequency, Fs (in air)

    1±5%MHz

    Free Capacitance, CT (1 kHz, 1 V)

    1000±20%pF

    Dynamic Resistance, R1

    ＜200Ω

    Mechanical Quality Factor, Qm

    ＞15

    Maximum Operating Voltage (Pulsed Wave, 2% Duty Cycle)

    ≤150Vpp

    Operating Temperature

    -20~+70℃

    Ingress Protection Rating

    IPX8

    Housing Material

    PPS+30%GF

    Housing Color

    Black

    Resonant Frequency, Fs (in air)

    1±5%MHz

    Free Capacitance, CT (1 kHz, 1 V)

    1000±20%pF

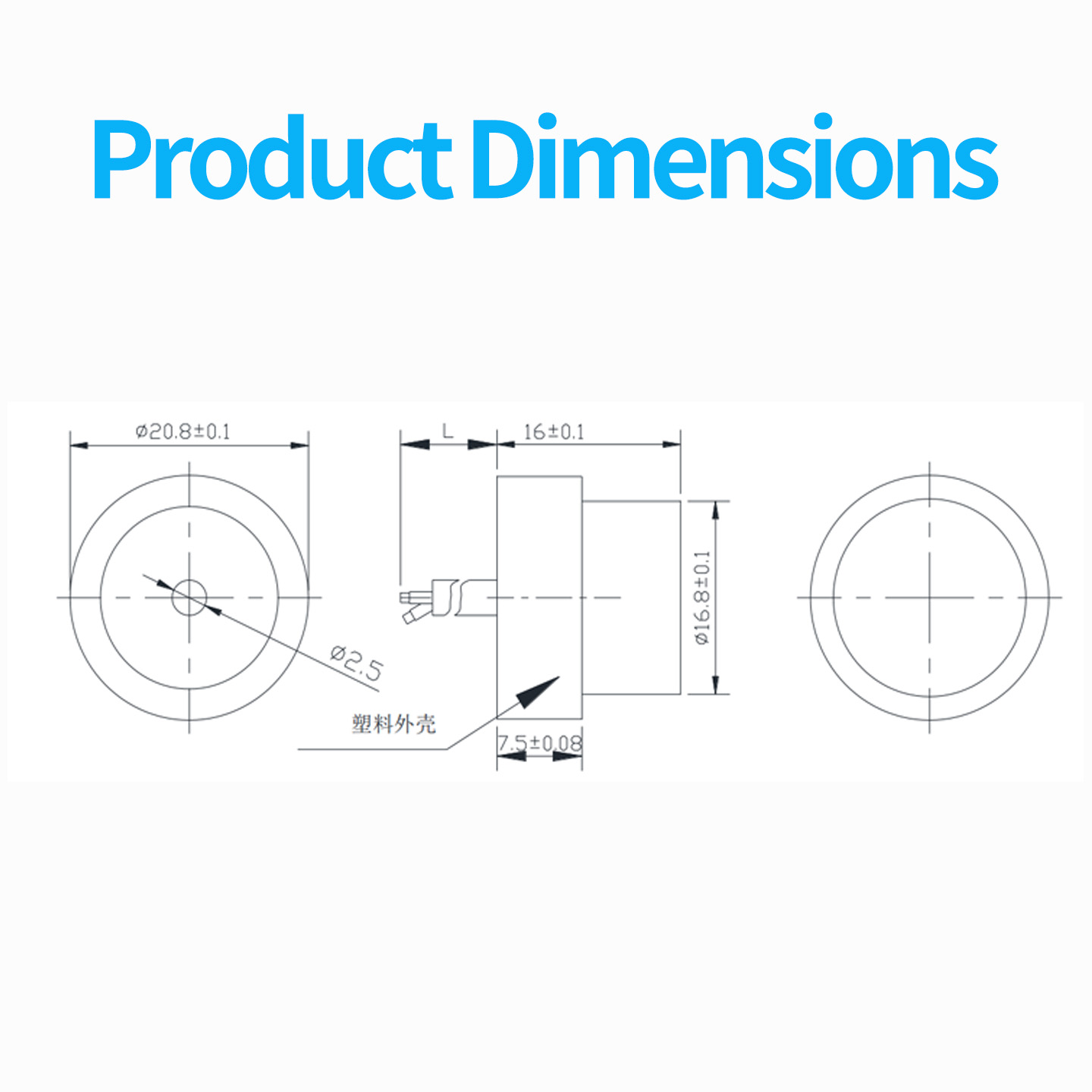

    And its dimensions look like :

    Dimension Drawing of Each Component

    Welcome to inquire for more details! Also, customization is also acceptable!
