    PLW 1Mhz Ultrasonic Flow Transducer for Heat Meter and Water Meter Probes
    Model : P-T0510012

    Ultrasonic Flow Transducer is mainly used in fields such as Water Meter Flow Monitoring Sensor, Underwater Ranging Sensor, Underwater Obstacle Avoidance Sensor, Liquid Level Sensors for Various Tanks and Vessels and Wide Application Range and High Cost-Effectiveness. It features Wide Application Range and High Cost-Effectiveness.

    Here comes its specification :

    Resonant Frequency, Fs (in air)

    1±5%MHz

    Free Capacitance, CT (1 kHz, 1 V)

    400±20%pF

    Dynamic Resistance, R1

    ＜500Ω

    Mechanical Quality Factor, Qm

    ＞15

    Maximum Operating Voltage (Pulsed Wave, 2% Duty Cycle)

    ≤150Vpp

    Operating Temperature

    -20~+70℃

    Ingress Protection Rating

    IPX8

    Housing Material

    PPS+30%GF

    Housing Color

    Black

    Resonant Frequency, Fs (in air)

    1±5%MHz

    Free Capacitance, CT (1 kHz, 1 V)

    400±20%pF

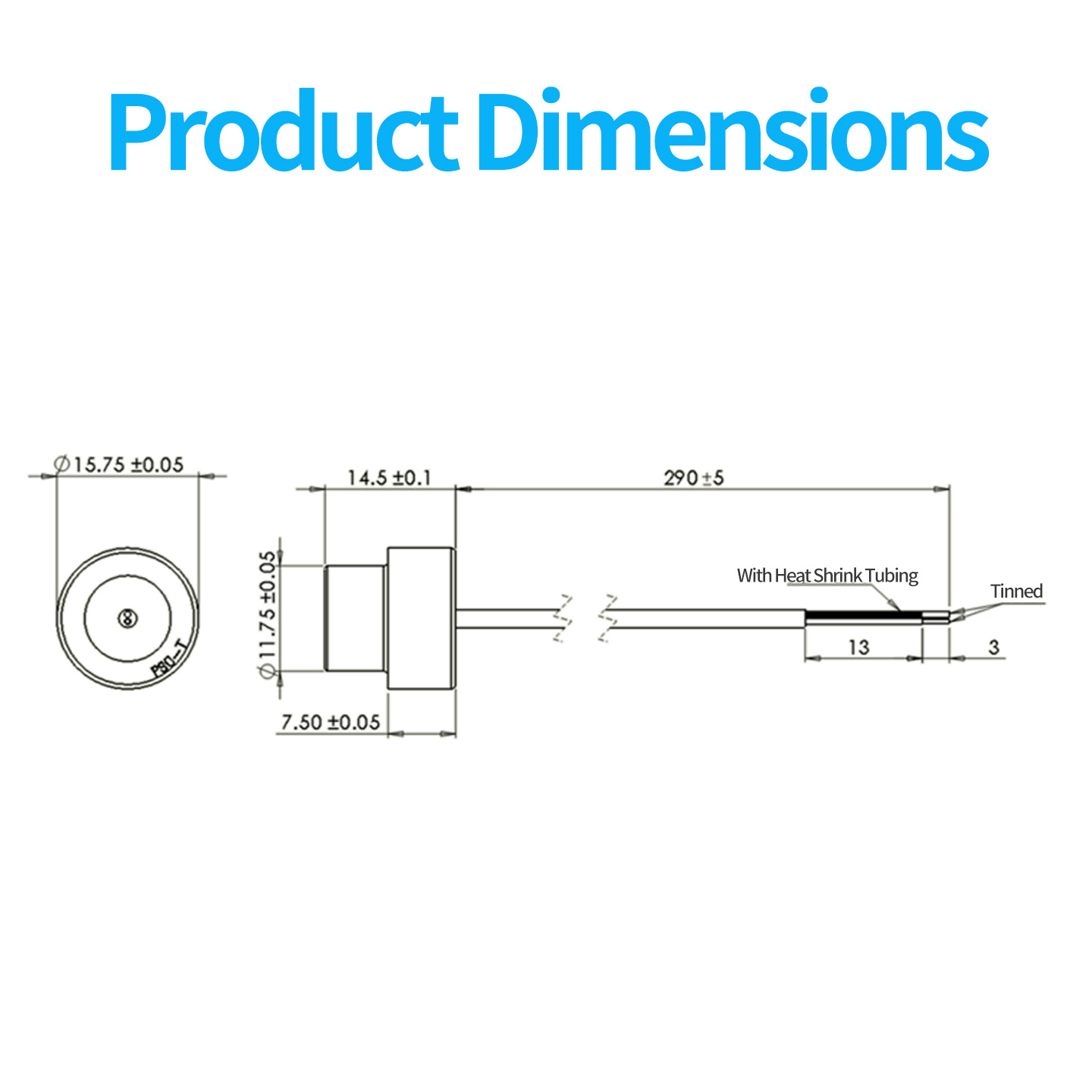

    And its dimensions look like :

    Dimension Drawing of Each Component

    Welcome to inquire for more details! Also, customization is also acceptable!
