    PLW 1Mhz Ultrasonic Flow Transducer for Liquid Level and Water Level Sensor Probes
    Model : P-T0610013

    Module P-T0610013 Ultrasonic Flow Transducer is mainly used in fields such as Flow monitoring sensor for water meters, Underwater distance measurement sensor, Underwater obstacle avoidance sensor as well as Liquid level sensor for various tanks and reservoirs. It features Wide Application Range and High Cost-Effectiveness.

    Here comes its specification :

    Resonant Frequency, Fs (in air)

    1±5%MHz

    Free Capacitance, CT (1 kHz, 1 V)

    500±20%pF

    Dynamic Resistance, R1

    ＜400Ω

    Mechanical Quality Factor, Qm

    ＞15

    Maximum Operating Voltage (Pulsed Wave, 2% Duty Cycle)

    ≤150Vpp

    Operating Temperature

    -20~+70℃

    Ingress Protection Rating

    IPX8

    Housing Material

    PPS+30%GF

    Housing Color

    Black

    Resonant Frequency, Fs (in air)

    1±5%MHz

    Free Capacitance, CT (1 kHz, 1 V)

    500±20%pF

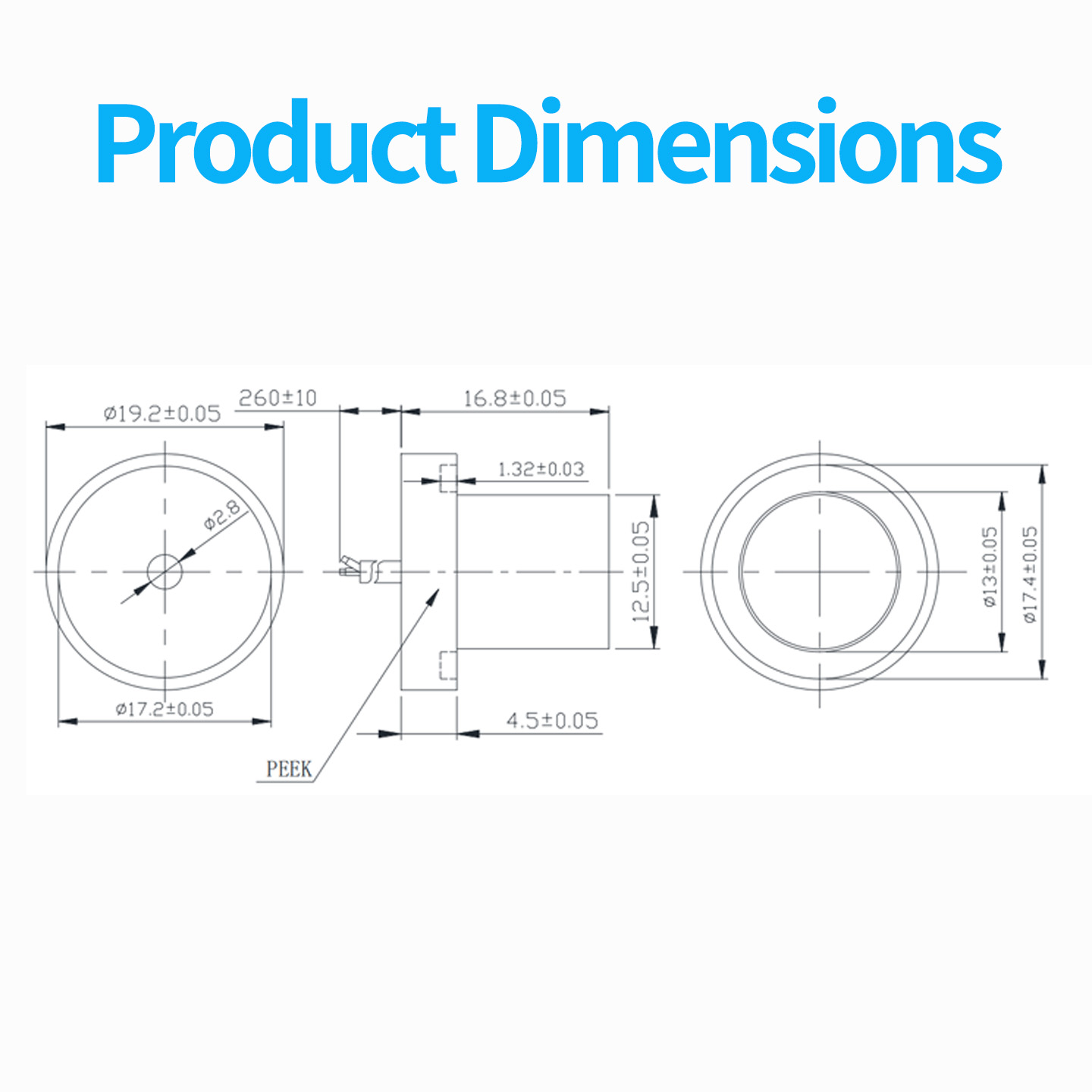

    And its dimensions look like :

    Dimension Drawing of Each Component

    Welcome to inquire for more details! Also, customization is also acceptable!
